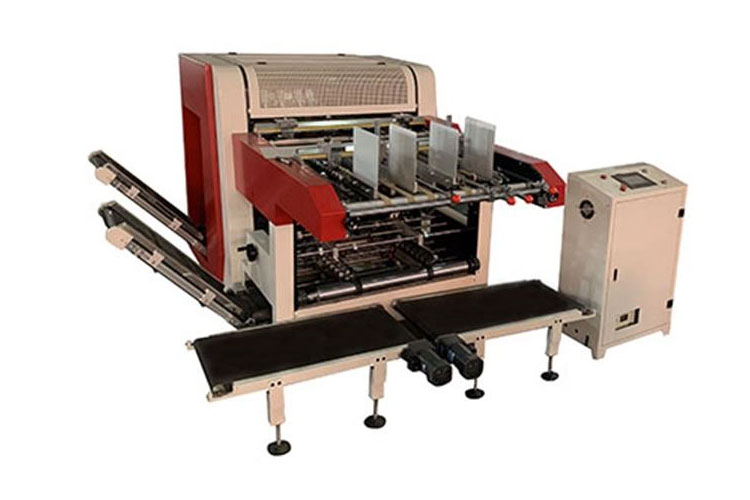

Professional Cardboard Grooving
Machine Manufacturer
Multi function:
automatic line cutting,automatic grooving, automatic remove corner ,so can dothese function at same time, savedie-cutting processing. save labor, increase production efficiency and safety.

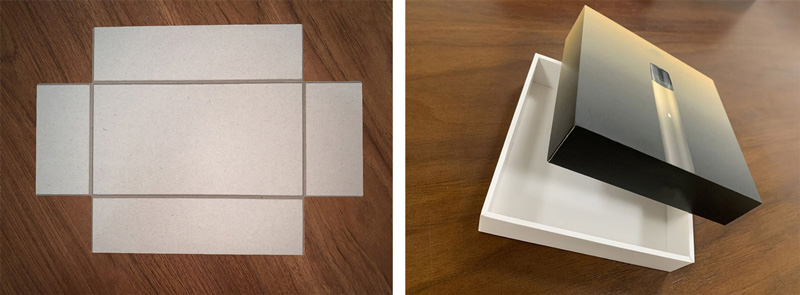

It is a very useful machine forcutting V grooves into board and cutting corner (removal corner from board),can work forcorrugated board, paper board,thin board,MDF, greyboard etc, help to folding material into box as more stereo feeling, so as to updated the quality grade of boxes.
|
Multi-function |
Automatic grooving and corner cutting (corner remove) |
|
Model |
SLG-850X |
|
Material width |
130-850mm |
|
Material length |
130-550mm |
|
Thickness |
1-3.5mm |
|
Best grooving accuracy |
±0.05mm |
|
Speed |
80-120PCS/Min (size of 200*200mm) |
|
Corner cutting length |
Min.13mm |
|
Quantity of grooving girder (crossbeam) |
2 |
|
Groove distance (between blades from the same girder) |
Min.70mm |
|
Groove distance (between blades from different girder) |
No limit |
|
Cutting knife |
4sets |
|
Grooving knife |
12sets ( 3 rows of knife ,can adjust the angle of each blade independently) ,with Magnetic grid positioning system. |
|
Power |
4.0KW |
|
PLC |
XINJIE MCGS TBC7062 |
|
Machine size |
2400*1990*1400mm |
|
Certificate |
CE |
|
Weight |
1680KGS |
|
Accessory |
1 EA sharpener of knife |
|
1 tool box:1set Allen wrench, straight screwdriver of 4 inch, open spanner, adjustable wrench, grater, instruction manual of inverter |
|
|
