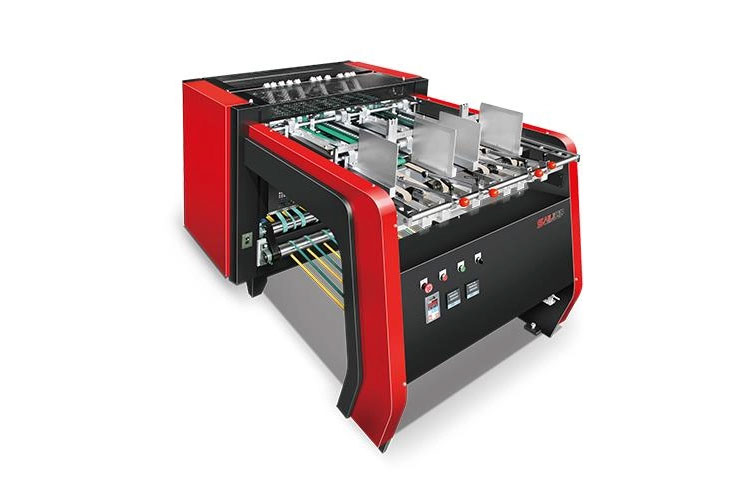

KLQ-600B automatic bidirectional grooving machine( specially customized for MDF) Advantages :

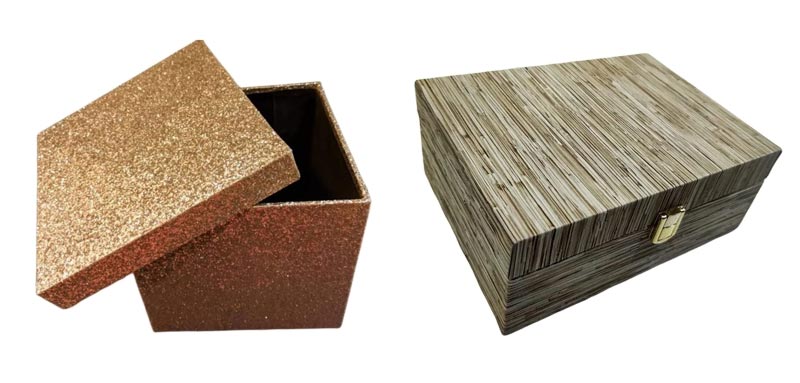

This MDF board grooving machine is newly invented based on the rich experience of grooving machinery manufacturing . It can able to cut out the crosswise and lengthwise v- groove (u-groove) on the board by once feeding. It's suitable for various of hard cover and Lid and base boxes ,include Mobile phone boxes,shoe boxes,cosmetic boxes,rigid boxes,etc.
|
Material Width |
130-600mm |
|
Material Length |
130-600mm |
|
Material thickness |
1-4.0mm |
|
The grooving accuracy |
±0.1mm |
|
Grooving angle |
80-140degree adjustable |
|
Grooving tool on the first step |
8sets |
|
Grooving tool on the second step |
4sets |
|
Big Drum number |
2 |
|
Machine power |
5.2KW |
|
Speed |
80-120PCS/Min (200*200mm) |
|
Main dimension |
3462*2533*1525mm |
|
Weight |
2250KGS |
|
Groove shape |
V shape , L shape , U shape |
|
Function : 1 Auto feeding →crosswise grooving →conveying →lengthwise grooving→Auto collector |
|
If you have any enquiry about quotation or cooperation,please feel free to email us at sunny@chinajsy.com or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
