Professional Cardboard Grooving
Machine Manufacturer

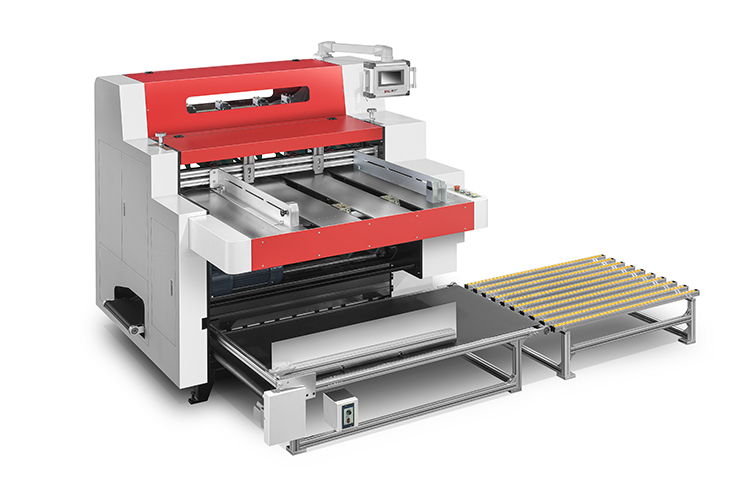

Saili responds to the needs of customers, based on independent research and development of the core technology, the grand introduction of one-way automatic cardboard slitting machine.
This machine says goodbye to the traditional round knife cutting method, adopts the new double-edged straight knife cutting method as well as the big cylinder and belt bundled cardboard fixing method, so that the slitting precision is high, fast and dust-free.
This product can meet the different production needs from paper mills to packaging factories, and accurately assist the perfect transformation from grey board / cardboard to high-quality hardcover case and rigid boxes.
|
Name |
Automatic slitting machine |
|
Material Max.Size |
890*1194mm |
|
Main.size of finished board |
100*1600mm |
|
Material thickness |
1.5-3.5mm |
|
Speed |
10-30PCS/Min (big size 890*1194mm) |
|
Precision |
±0.15mm |
|
Min,width of waste strip |
10mm |
|
Min.distance between double knives |
70mm |
|
Power |
7KW |
|
Voltage |
380v 50hz 3 phase ( or customized ) |
|
The quantity of knife |
11 servo knives |
|
Weight |
2525KGS |
|
Dimension |
2242*1890*1793mm |
If you have any enquiry about quotation or cooperation,please feel free to email us at sunny@chinajsy.com or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
