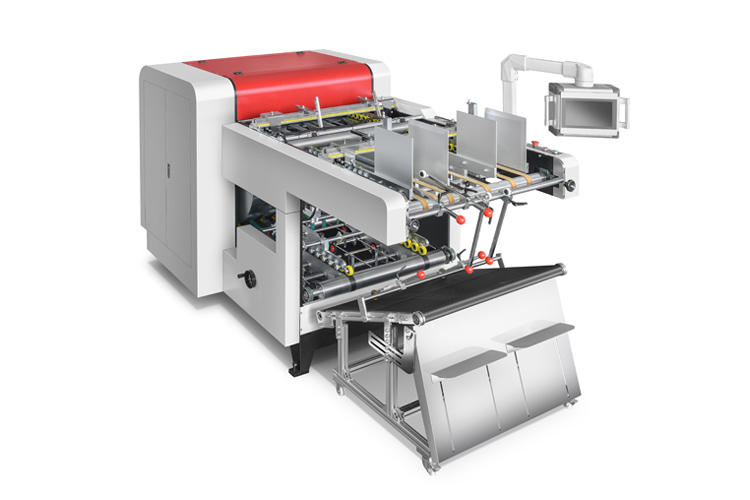

SLG-850S Automatic grooving & corner cutting machine

SLG-850S Automatic grooving & corner cutting machine

Listen to the feedback and focus on the experience! SALI automatic corner cutting and grooving machine is newly upgraded, with servo cutter at the corners.
Inquiry Download
Function Introduction

Listen to the feedback and focus on the experience! SALI automatic corner cutting and grooving machine is newly upgraded, with servo cutter at the corners. The new system makes the operation more convenient and hassle-free than ever before, gives the operator more precise control, simplifies the complex process, and significantly improves the production efficiency and quality of the finished product.



No need for die-cutting, one step at a time! SALI automatic corner cutting and grooving machine combines corner cutting + grooving functions, eliminating the need for independent die-cutting and simplifying the production process, which is the preferred solution for efficient production of high-quality boxes.



Machine Feature :



1.Automatic cutting and grooving by one machine.

2. Remove the corner automatic from board quickly.

3.Automatic feeding by conveyor belt.

4. Servo system of corner cutting knives .

5.With stable chassis, ensure machine to run smoothly and quickly.

6.Durable blade, equipped with blade sharpener which makes operation easier.

7.If you don't need the cutting function, you can close it, and only use the grooving function of machine

8. High precision and high speed for cardboard.

Technology Parameter

Multi-function

Grooving and corner cutting (corner remove)



Model

SLG-850S

Material width

150-850mm

Material length

180-550mm

Drum width

1100mm

Thickness

1.5-3.5mm

Best grooving accuracy

±0.05mm

Speed

80-120PCS/Min  (size of 200*200mm)

Corner cutting length

Min.15mm

Corner cutting accuracy

≤2mm

The way of corners cutting

4 servo knives

Grooving knife

9 sets (with digital Auxiliary Positioning )

Quantity of grooving girder (crossbeam)

2

Groove distance

(between blades from the same girder)

Min.70mm

Groove distance

(between blades from different girder)

No limit

Power

6.0 KW

PLC

Delta

Sensor

Omron/Panasonic

Inverter

Senlan

Servo

Delta

Relay

German Muller

Machine size

2650*1432*1438mm

Certificate

CE

Weight

2360KGS

Finished board collecting

By slant conveyor belt with table

Accessory

1 EA sharpener of knife

1 tool box:1set Allen wrench, straight screwdriver of 4 inch, open spanner, adjustable wrench, grater, instruction manual of inverter

20 PCS blades of V shape

Youtube video

https://youtu.be/PqGHfg5OJ7U

Sample Display

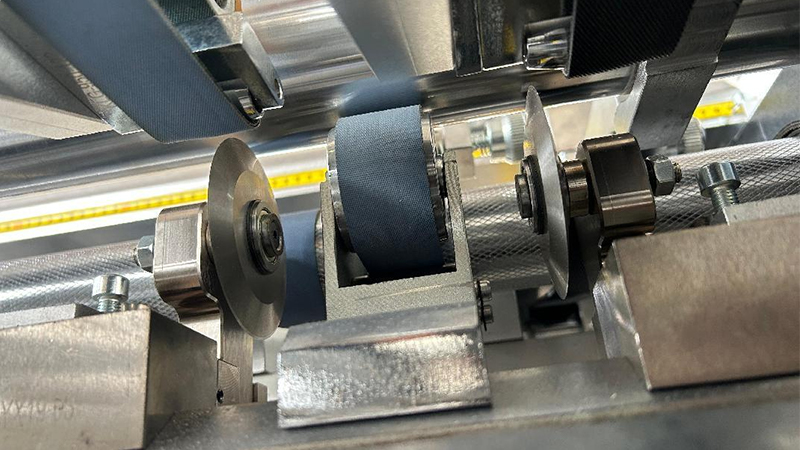

Corner cutting knife :servo system

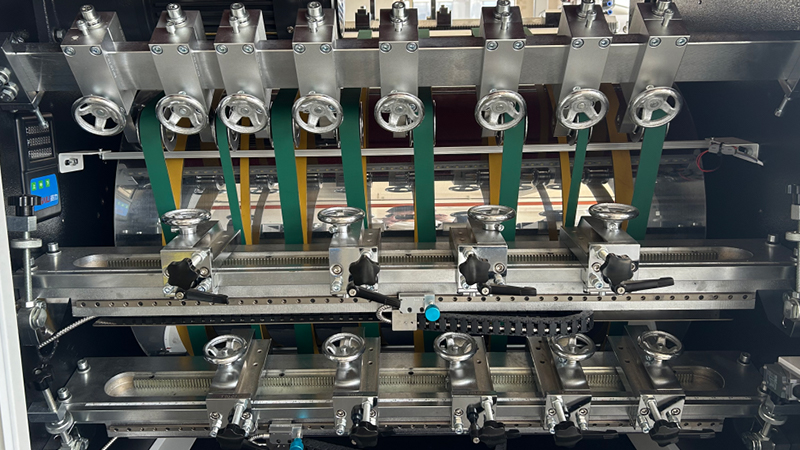

Grooving part: 9 grooving knives  (Digital Auxiliary Positioning )

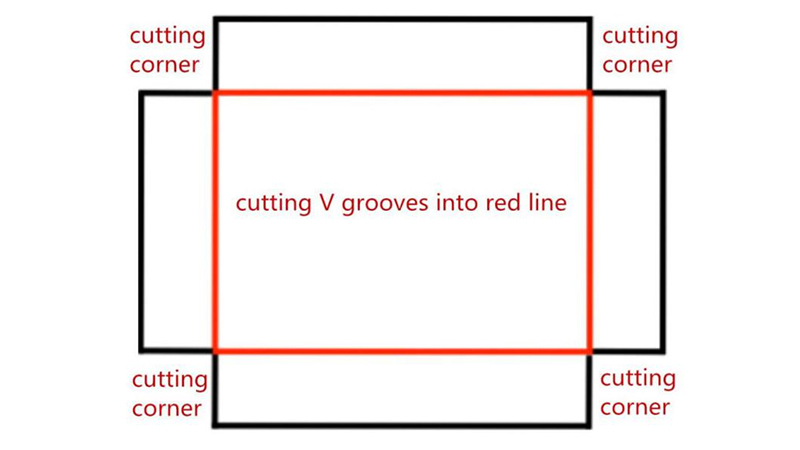

About what machine can do ?

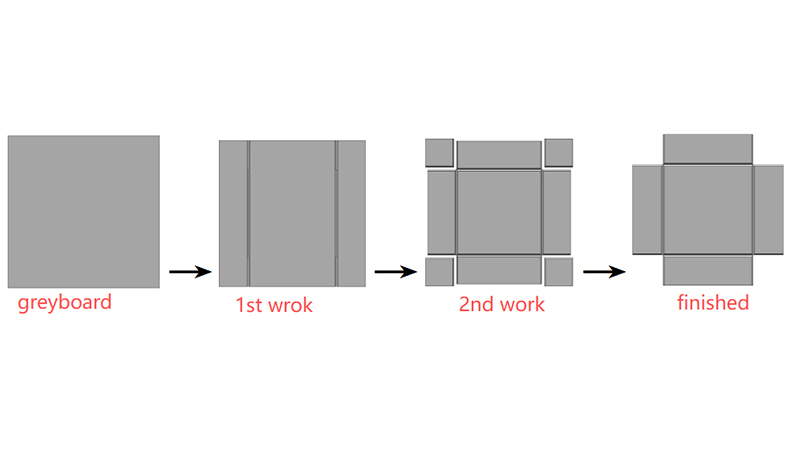

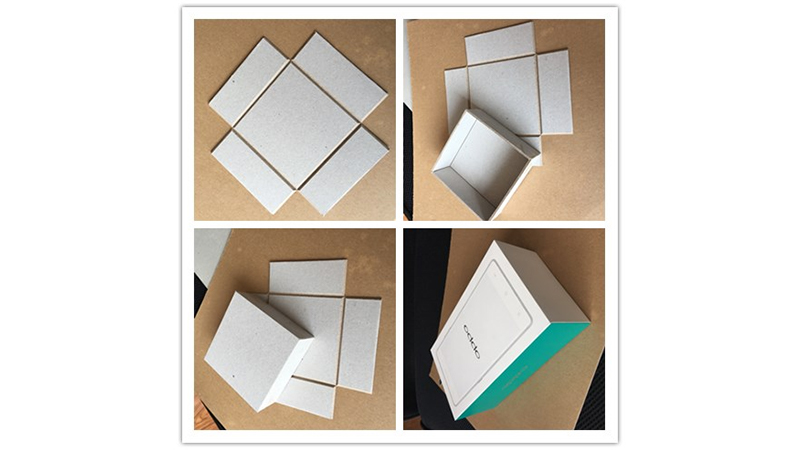

Working process:
