SLZ-928 Automatic Grooving Machine (With Magnetic Grid Positioning System)

Automatic grooving machine is used fornotching V groove /U groove oncardboard, chipboard, rigid board,corrugated board,paperboard ,MDF ,etc.

Inquiry Download

Function Introduction

Feature：

Automatic grooving machine is used fornotching V groove /U groove oncardboard, chipboard, rigid board,corrugated board,paperboard ,MDF ,etc.

It has highgrooving accuracy, dustless, little noise, highly effective, energy conservation, environmental protection. Help you to solve the package grooving problem.

Technology Parameter

Cardboard width	100-850mm
Cardboard length	100-500mm
Thickness	200GSM-3.5MM
Grooving precision	±0.1mm
Speed	100-120PCS/Min ( size 200*200mm)
Grooving tool	With magnetic grid positioning system.
Grooving degree	90° knife (80-100°),120° knife (110-130°) Adjust the Angle of each knife head individually .
Grooving knives	12 sets ( 12 knives in 3 rows)
Girder (crossbeam)	2
Power	2.5KW
Groove distance (between blades from different girder)	No limit
Groove distance (between blades from the same girder)	Min. 70mm
Way of waste cleaning	By dedicated conveyor belt
Video link :	https://youtu.be/NIDTTli0TrI

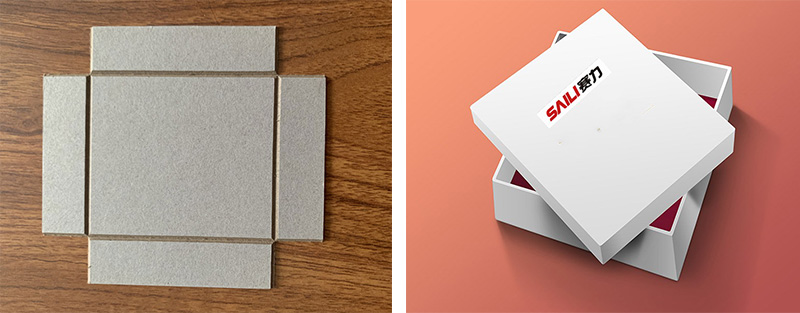

Sample Display
