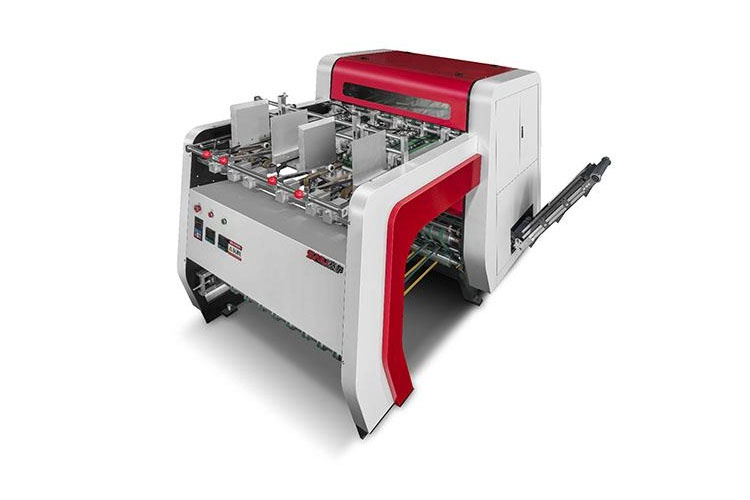

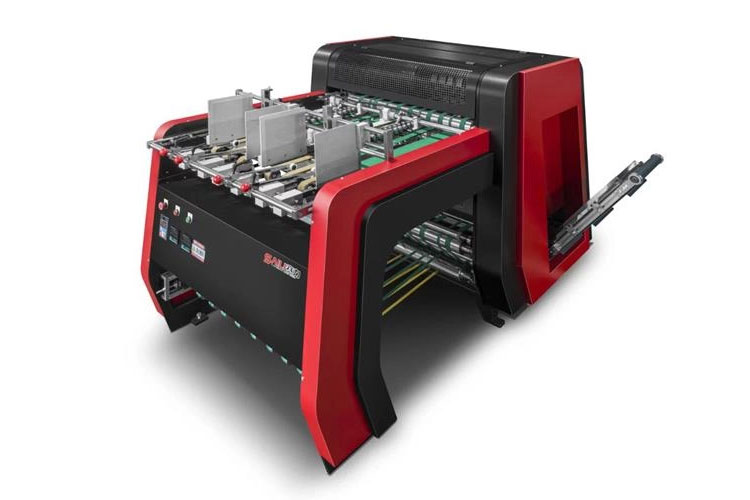

Professional Cardboard Grooving
Machine Manufacturer
Performance:

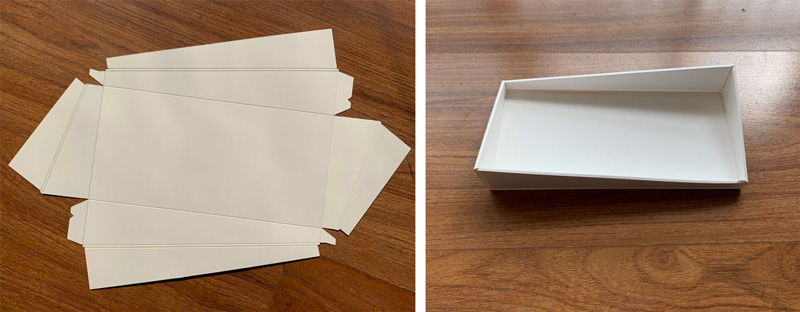

Automatic grooving machine is used high speed feeder for sub-sheeting feeding ,it resolves the scraping problem of special shape paperboard. When the two paperboard is feeding in one time ,the machine will be automatically shut down.
We’re the first manufacturer of original design drum type grooving machine with feeder feeding system .Especially,it can cut cardboard thickness under 350GSM.
|
Product name |
Automatic grooving machine |
|
Model |
SLZ-935 |
|
Material width |
200-650mm |
|
Material Length |
180-450mm |
|
Thickness |
157gsm-350gsm |
|
Way of feeding |
Auto feeder (Feida) |
|
Grooving accuracy |
±0.1 |
|
Speed |
100PCS/Min (work piece size 300*300mm) |
|
Grooving degree |
90° knife (80-100°),120° knife (110-130°)
|
|
Groover quantity |
12 ( 12 knives in 3 rows) |
|
Girder (crossbeam) |
2 |
|
Power |
3.5KW |
|
Machine size |
2500*1300*1350mm |
|
Certificate |
CE |
|
Weight |
2000KGS |
|
Dimension |
2886*2886*1550mm |
|
Adjustable knife left position or right |
By magnetic gird positioning system |
|
Way of waste cleaning |
By dedicated conveyor belt |
|
Accessory |
1 EA grinder of knife |
|
1 tool box:1set Allen wrench, straight screwdriver of 4 inch, open spanner, adjustable wrench, grater, instruction manual of inverter |
|
|
20 PCS blades of V shape |
|
|
